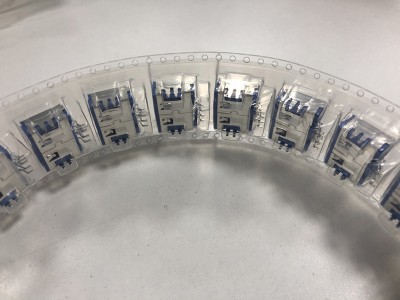

蘇州喬訊電子周工提醒，后綴C是藍色GT17H-4P-2DS(C)廣瀨HRS汽車料
GT17H/HN 系列
High Speed Data Tran*ission Shielded Connector with Positive Lock Meeting Automotive Spec. 2mm Pitch / 8.3mm(GT17H), 9.6mm(GT17HN) Height
特點
車用屏蔽連接器(2mm 引腳間距)用于網絡, 高速通訊
1. 全面屏蔽結構.
2. 理想的車用U*連接器.
產品規格
|
產品信息 |
|
|
產品名稱 |
GT17H-4P-2DS(C) |
|
連接器類型 |
插座 |
|
PIN數 |
4 |
|
(嵌合部分)列數 |
1 |
|
安裝間距 |
2.0mm |
|
開口間距 |
2.0mm |
|
連接器長度(間距方向) |
15.45mm |
|
連接器寬度(縱向) |
13.95mm |
|
連接器高度 |
7.2mm |
|
安裝方法 |
DIP穿孔 |
|
基板封裝設計 |
板上 |
|
交錯引線 |
無 |
|
推薦底板厚度 |
1.6ｍｍMax. |
|
開口方向 |
直角 |
|
插拔次數 |
30 |
|
接觸部電鍍 |
錫 |
|
電鍍厚度 |
1.0μm |
|
外殼顏色 |
藍色 |
|
適合電線類型 |
屏蔽電纜 |
|
(Max.)使用溫度范圍 |
105℃ |
|
(Min.)使用溫度范圍 |
-40℃ |
|
鎖定方式 |
插銷鎖扣 |
|
電氣性能 |
|
|
額定電流 |
1.0A |
|
(AC)額定電壓 |
AC250.0V |
|
接觸電阻 |
30.0mΩMax. |
|
耐電壓 |
650VMax. |
|
傳輸規格 |
U*2.0,LVDS |
|
傳輸速度 |
1.0Gbps |
|
其他 |
|
|
(mm)寬度 |
0.5mm |
|
包裝形式 |
卷盤 |
|
購買的單位數 |
300PCS |
|
質量 |
1.71g |
|
箱數 |
300PCS |
蘇州喬訊電子周工提醒，后綴C是藍色GT17H-4P-2DS(C)廣瀨HRS汽車料
